Ergodox coding layer layout

I’ve previously written about the Ergodox EZ and the difficulty of where to place all those pesky right-pinky keys that don’t fit, and how to make those symbols (many of which are frequently used for coding) convenient to access.

Before jumping into my solution, let’s review other popular ideas:

  • ZSA’s default Ergodox layout has square brackets on the bottom row of the base layer, and various parens/brackets on the left middle and index columns on a “symbols” layer. The symbols layer is activated with the pinkies. = is in heaps of places: top-right of the base layer, and in layer 1 next to the layer 1 toggles.
  • BEAKL 15 places various bracket-like symbols on the AltGr layer, using the ring and index fingers of both hands. = is on the right middle finger, home row. The AltGr key is on the right thumb.

My solution is a coding layer:

diagram of right-hand key assignments on an ergodox keyboard

The left thumb’s space key acts as a layer modifier for the coding layer while held. The coding layer adds a shift modifier to all the numbers (except 9 and 0, which become square brackets instead of parentheses), and also changes the right hand to have the following layout (where ()=⏎ are the home positions):

&*[]⌫
0{}\/
()=⏎-
!":>+

I think this works better for modern programming languages (C, C++, Java, Javascript, Python, Ruby, Swift) than the ZSA and BEAKL layouts. It optimizes frequent bigrams and trigrams by making them rollable without releasing the layer modifier. For example, ␣{⏎ is a single-direction roll, as are ():⏎ (think Python!), ␣=> (think Javascript arrow functions), ({, }), )⏎ and }⏎. The frequent trigram ␣=␣, while not a continuous roll, is all on home-positions. The layout also complements Dvorak’s left hand symbols: );⏎ can be timed as one stroke.

Subtly, these placements are meant to feel familiar to Dvorak users. I have short pinkies, so I type [0] on Dvorak by moving my whole hand slightly then hitting middle-index-ring with a single stroke; the same can be done with this layout. Similarly, I hit = on Dvorak with my ring finger; it’s still the same finger, but the home-row placement reflects the high frequency of “ = ” in code. Having \ and on the right pinky should also feel very familiar.

I think the layer modifier is also better placed (on the thumb rather than the pinkies) compared to ZSA’s layouts. This leaves all the other left hand fingers in relatively comfortable positions, and space is already covered by the right thumb. I take advantage of this by using the left-hand home positions for modifier keys.

diagram showing an ergodox keyboard layout for the left hand

Of course, my typing preferences aren’t the same as everyone else. This layout is certainly not “balanced” (it’s biased to typing characters with the right hand), and it really emphasizes the efficiency of strokes and rolls rather than penalizing finger movement. It doesn’t perform amazingly with conventional BEAKL penalties.

You can check out my QMK branch from github for the source code, or download the compiled firmware directly (it’s Oryx-compatible!).

Edit 2020-10-28: this is actually v2 of the coding layer, this post previously described a slightly different layout.

Silenced Kailh Speed Copper switches

I really like Kaihua’s Kailh Speed Copper mechanical keyboard switches because of their shallow, tactile and light activation feel. However, I don’t like their noisy upstroke. Here’s how I modded my switches to make them quiet.

First I added silicone O-rings to the keycaps to silence the bottom-out. Although the squishy feel isn’t great, I rarely bottom-out anyway. A look at the force/travel profile (input.club, Kaihua) shows why: only 45gf is required to overcome the tactile bump at 0.25mm, which falls away quickly to activate the switch at 1.1mm. Then there’s a huge linear cushion ramping up to 60gf over the next 2.5mm, so you really have to be banging at the key to not notice the bump and keep going all the way to the bottom.

So the upstroke is the main challenge for silencing the Speed Coppers. Plugged into an Ergodox EZ with PBT DCS keycaps, the upstroke noise is 68dB with normal typing, and 89dB when generating maximum clack by sliding my finger off a fully-depressed key. The peak frequency around 950Hz also causes some “ping” due to resonance with the spring.

My solution was basically the latex mod, but with slightly different materials.

Tools & Materials

  • Permatex Ultra Blue Gasket Maker. RVT silicone that dampens the impact between the stem and the top-housing.
  • 1.5mm flathead screwdriver. For opening Kailh switches; you could also use a Kailh-compatible switch-opening tool.
  • 2.5mm flathead screwdriver. For applying the silicone.
  • Tweezers. For picking up stems and springs.
  • Sewing pin or darning needle. For piercing and unclogging the silicone nozzle, and removing excess silicone
  • Cotton tips, rag. For wiping up silicone from any places it shouldn’t be (your skin, switch housing, etc.)
  • Egg cartons. For holding parts, tools, and wiping tools clean. You could also use a lubrication station if you have one.

Method

  1. Separate the top-housing from all switches. I do this with the 1.5mm flathead by slipping it under one corner of the top-housing’s clip, sliding it to the centre, depressing the stem, then pushing the screwdriver up until it can lever the top-housing off. Put the bottom housing + spring + stem assemblies to one side.
    photo of switches with top-housing removed
  2. Get the silicone flowing in a controlled way. Cut the tip of the Ultra Blue’s nozzle just before it hollows out. Use the pin to make a small hole at the end of the nozzle. Pierce the foil seal of the tube using the cap, attach the nozzle, and squeeze the tube until the silicone comes out the end of the nozzle. If the silicone becomes hard to squeeze out later, unblock the nozzle using the pin.
    photo of disassembled top-housings and Ultra Blue tube
  3. For each top-housing, squeeze out beads of silicone that can cover the width of the tip of the 2.5mm flathead screwdriver. Apply the silicone to the trapezoidal recess in the top-housing where the rails on the side of the stem make contact with the top of the housing; repeat for each side. I used a wiping motion with the flathead so the silicone was 1mm thick at the back of the trapezoid, with an even slope down to about 0.2mm thick at the inner edge. It will become thinner later!
    photo of silicone on the tip of a flathead screwdriver
    Use enough silicone to cover the tip of a 2.5mm flathead

    photo of top-housings with silicone applied
    Top-housings with silicone applied
  4. Clean up. Remove any excess silicone smudges from the housings using the cotton tips and pin. Wipe any silicone off the tools and work area.
  5. Around 45–60 minutes after application, the silicone will still be malleable but will no longer be tacky. At this time, lightly press a stem into each top-housing. You should aim to get the stem near where it would sit at the top of a keystroke (with the rectangular block of the stem protruding slightly past the top of the housing), but without pressing so hard that the ledges on the sides of the stem actually contact the top-housing. The ledges on the side of the stem should leave an impression in the silicone.
  6. Wait an additional hour for the silicone to harden (an opportunity for lubing?), then re-assemble the switches and put them into your keyboard.
    Putting keycaps on is okay, but taking them off at this point may damage the uncured silicone.
  7. Wait a full 24 hours after initial application for the silicone to finish curing before typing.

Results

After this process, the switches were substantially quieter (50dB typing peak, 70dB “maximum clack”). “Silent” is an exaggeration, though they seem comparable to commercial “silent” tactile switches and Apple keyboards. Most of the remaining noise sounds like contact between the leaf spring and the stem after the sharp tactile bump. The sound was consistent across most switches, though I demoted some of the louder ones (where the silicone was thinner) to spares. The tactility doesn’t feel different from the unmodified switches (although the stem must be sitting imperceptibly lower), and the stems all seem correctly aligned.

Compare some recordings yourself: factory and modified.

Notes

I chose Permatex “Ultra Blue” even though eol2501 recommended Permatex “Ultra Grey”. On paper, Ultra Blue (not to be confused with the other blue-tubed gasket maker eol2501 tried) is more elastic and softer, curing at 30A compared to Ultra Grey at >45A.

I found it took about 40 minutes to apply the silicone to 35 switches (including opening the switches up). I split my keyboard into two batches; this meant the first batch was ready for the stem impressions once I had applied the silicone on the second batch.

Speed Copper switches reach the peak of their tactile bump after only 0.25mm of travel, so I was quite concerned with applying too much dampener and ruining the tactile bump. I was also worried that variations in the manual application of the silicone would make the switches feel inconsistent or even wonky. Making an impression with the stem before the silicone has fully cured helps to preserve the stem’s high-point. Gauging the volume of silicone and shaping it using the flathead helps reduce variation. These measures seem to have been sufficient for retaining the tactile feel and consistency.

Failed experiments

Prior to trying the Ultra Blue, I was looking for a much thinner silicone coating that wouldn’t alter the travel. I tried applying Electrolube’s flexible silicone conformal coating to the top of the stem rails (the same place where commercial silent switches add upstroke dampeners). Applying it to the top-housing wasn’t an option since it uses a xylene solvent, which is fine on the POM stem but would degrade the polycarbonate upper housing. The FSC compound dries down very thin (< 0.1mm). However, it turned out to be too thin and hard – there was no noise reduction!

Then I tried rubber bands, thinking that the consistent thickness of the rubber band would give a consistent key-feel compared to manually applied liquid latex or silicone. The smallest width for standard sized rubber bands is 1.5mm. I tried stuffing sections of a size 18 band in the top-housings where the stem makes contact, and while they were very effective at silencing the upstroke, they took up way too much space. The 1mm x 1.5mm cross-sections means that after getting squashed, the rubber protrudes into the space where the the stem passes through the top-housing, stopping the stem from reaching the top of the stroke.

photo of switch with rubber band mod
The stem is interrupted by the rubber band segment protruding into the centre of the housing

It’s also worth pointing out that none of the silencing clips I’m aware of (namely GMK QMX and Zealencio silencing clips) are compatible with Kailh housings, though I don’t expect them to be very effective for upstrokes anyway.

Make control-h backspace in TextMate

In macOS, ^h (AKA control + h or ctrl h) will usually delete backward one character, i.e. do the same thing as backspace or what Apple labels delete on its keyboards. Therefore it’s somewhat disconcerting that ^h in TextMate runs “Documentation for Word” or similar “Documentation for Current Word” actions.

Here’s how to disable the default control-h behaviour in TextMate 2.0, and get backspace behaviour instead.

From the menu bar, click Bundles > Select Bundle Item.

screenshot of TextMate Select Bundle Item dialog

From the gear menu in the “Select Bundle Item” dialog, select “Key Equivalent”.

TextMate Select Bundle Item dialog searching for ^h key equivalent

In the search box, press ^h.

Then for each of the matching documentation actions (there may be several from different bundles), click “edit” then clear the “Key equivalent” field in the side drawer. Close the bundles window and save.

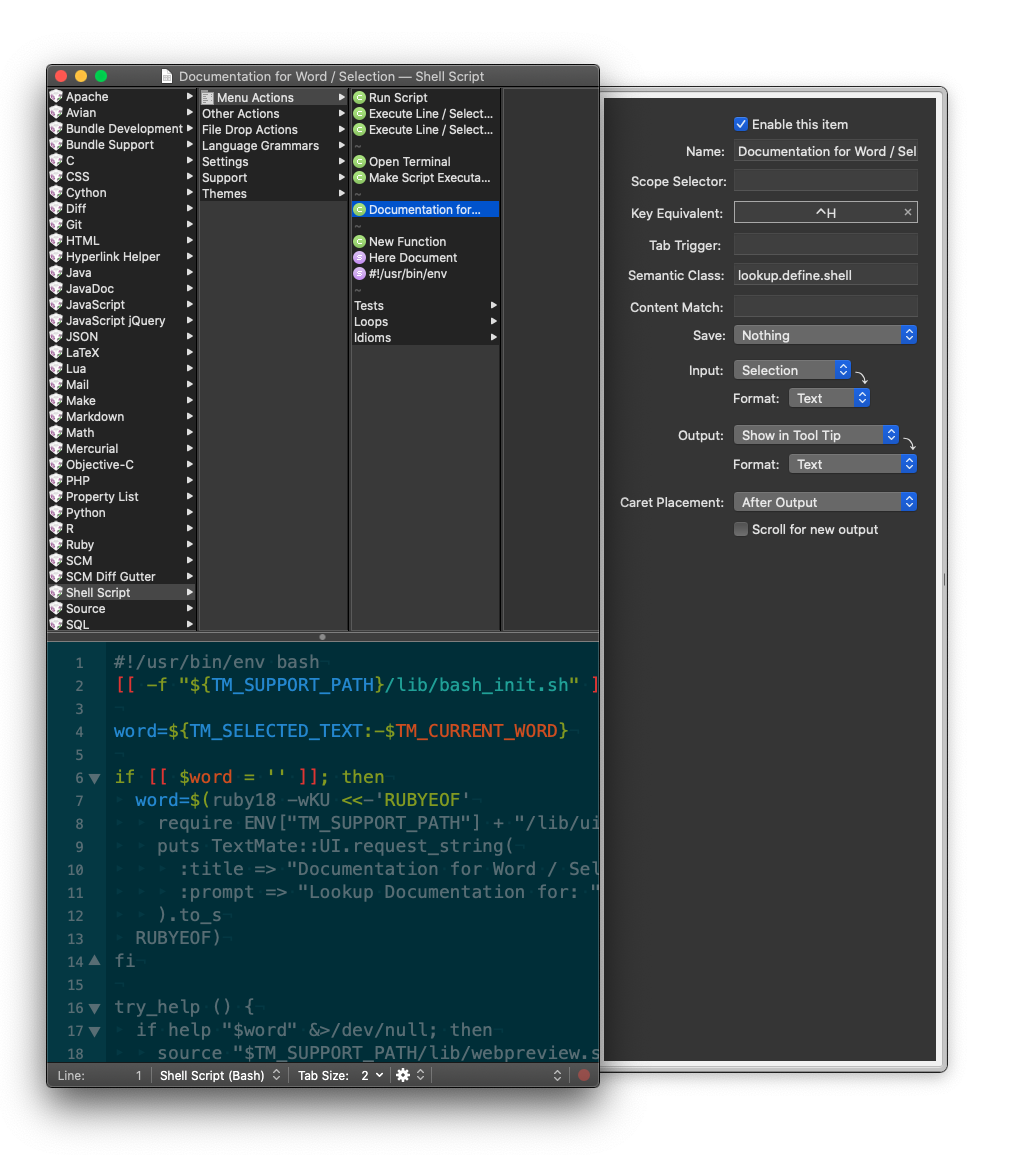

screenshot of the TextMate bundle editor

Repeat the previous step for any other bundles that define a documentation action for ^h.
